FT Series - Front Terminal Battery

Overview+

NPP Power Front Terminal Series batteries are mainly used in the area of communication. By adopting a new AGM separator and centralized venting system, the battery can be installed in any position while maintaining high reliability. Available in gel technology also.

Design Features+
  • Low internal resistance Long service life High energy density Very low self-discharge Container available in flame retardant (UL 94-V0)

Applications+

  • UPS Telecommunication Solar and wind systems

CHaracteristics+

  • Capacity range: 50Ah to 200Ah Available in: 12V blocks EUROBAT design life: 10/12 years, Long Life Self-discharge per month: ≤ 3% at 25°C Operation temperature range: – 20°C to + 50°C Recommended operation temperature: 25°
  • NPP AGM&Lithium Battery

Description

Battery Model Nominal Voltage[V] 20Hr 10Hr 5Hr Internal Resistance [mΩ] Terminal Type Terminal Location Design Life [years] 20℃ Approx Weight[Kg] ±3% Length Width Height Total Height View
Datasheet
FTG12-50Ah 12 53 50 41 8 T14 E 10-12 16.00±3% 10.91 5.43 8.31 9.02 Download
FTG12-75Ah 12 79 75 62 6.5 T14 E 10-12 25.00±3% 22.12 4.49 7.44 7.44 Download
FTG12-100Ah 12 106 100 82 6 T16 E 10-12 32.80±3% 15.55 4.33 11.26 11.26 Download
FTG12-105Ah 12 111 105 86 5.5 T16 E 10-12 32.00±3% 19.92 4.33 8.82 9.41 Download
FTG12-125Ah 12 132 125 103 5 T16 E 10-12 42.00±3% 21.5 4.13 12.4 12.4 Download
FTG12-150Ah 12 159 150 123 4.5 T16 E 10-12 47.50±3% 21.69 4.33 11.3 11.3 Download
FTG12-155Ah 12 164 155 128 5.4 T18 E 10-12 49.50±3% 21.5 4.92 12.4 12.4 Download
FTG12-180Ah 12 190 180 153 4.2 T18 E 10-12 55.00±3% 21.5 4.92 12.4 12.4 Download
FT12-50Ah 12 53 50 42 7.5 T14 E 10-12 16.00±3% 10.91 5.43 8.31 9.02 Download
FT12-55Ah 12 60 55 45 7 T14 E 10-12 17.30±3% 10.91 4.17 8.7 8.7 Download
FT12-75Ah 12 79 75 64 6 T14 E 10-12 24.50±3% 22.12 4.49 7.44 7.44 Download
FT12-100Ah 12 106 100 85 5.5 T16 E 10-12 32.80±3% 15.55 4.33 11.26 11.26 Download
FT12-105Ah 12 111 105 89 5 T16 E 10-12 32.00±3% 19.92 4.33 8.82 9.41 Download
FT12-125Ah 12 132 125 100 4.5 T18 E 10-12 42.00±3% 21.5 4.13 12.4 12.4 Download

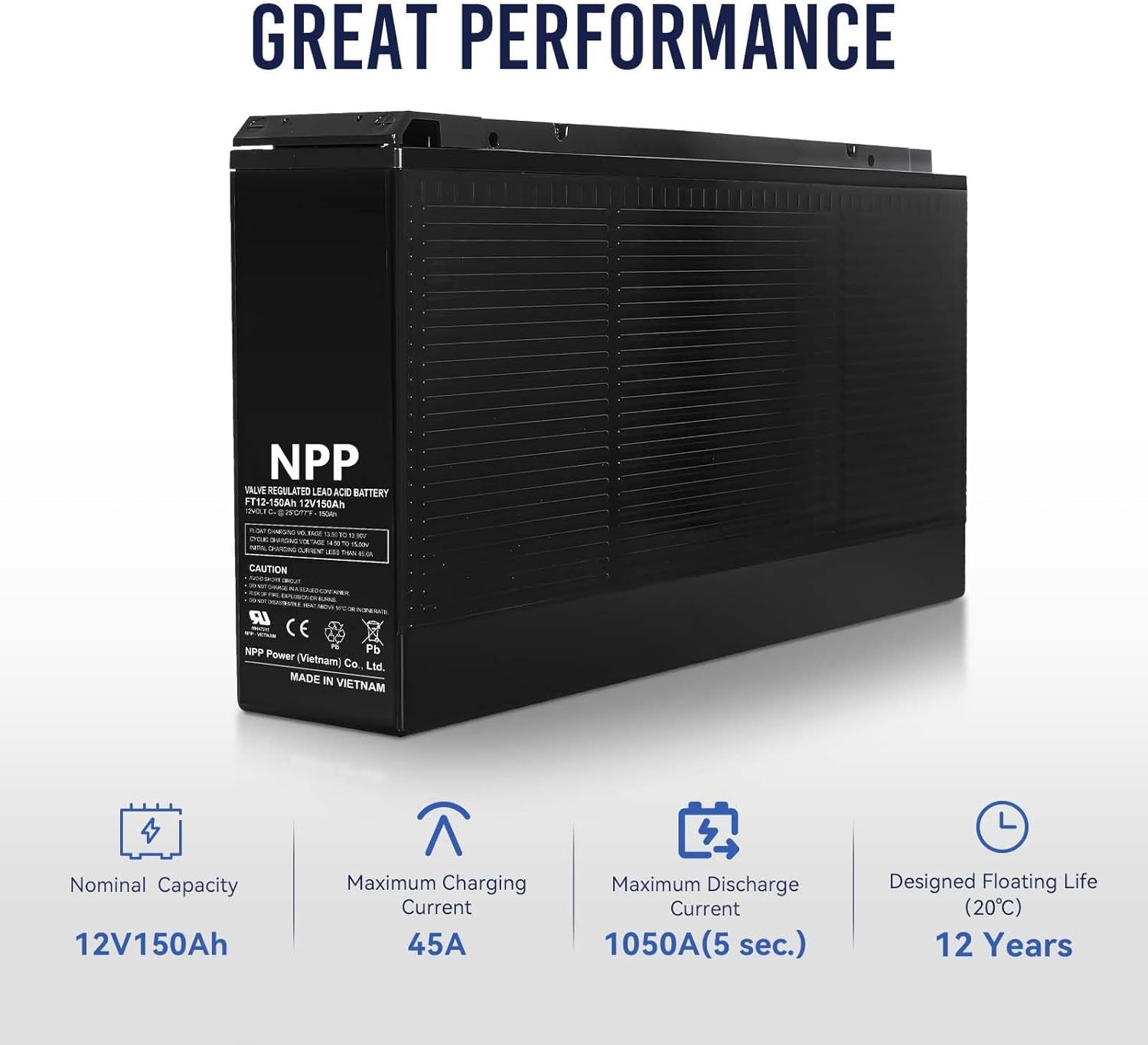

FT12-150Ah 12 159 150 128 4 T16 E 10-12 47.50±3% 21.69 4.33 11.3 11.3 Download
FT12-155Ah 12 164 155 132 4.8 T18 E 10-12 50.00±3% 21.5 4.92 12.4 12.4 Download
FT12-180Ah 12 190 180 153 3.8 T18 E 10-12 55.00±3% 21.5 4.92 12.4 12.4 Download
FT12-200Ah 12 212 200 170 3.5 T18 E 10-12 60.50±3% 21.5 4.92 12.5 12.7 Download
FTG12-50Ah 12 53 50 41 8 T14 E 10-12 16.00±3% 10.91 5.43 8.31 9.02 Download
FTG12-75Ah 12 79 75 62 6.5 T14 E 10-12 25.00±3% 22.12 4.49 7.44 7.44 Download
FTG12-100Ah 12 106 100 82 6 T16 E 10-12 32.80±3% 15.55 4.33 11.26 11.26 Download
